PoE Powered Device

ST Micro STM32H563 Microcontroller
IEEE 802.3at PoE power input
10/100 Ethernet

Overview

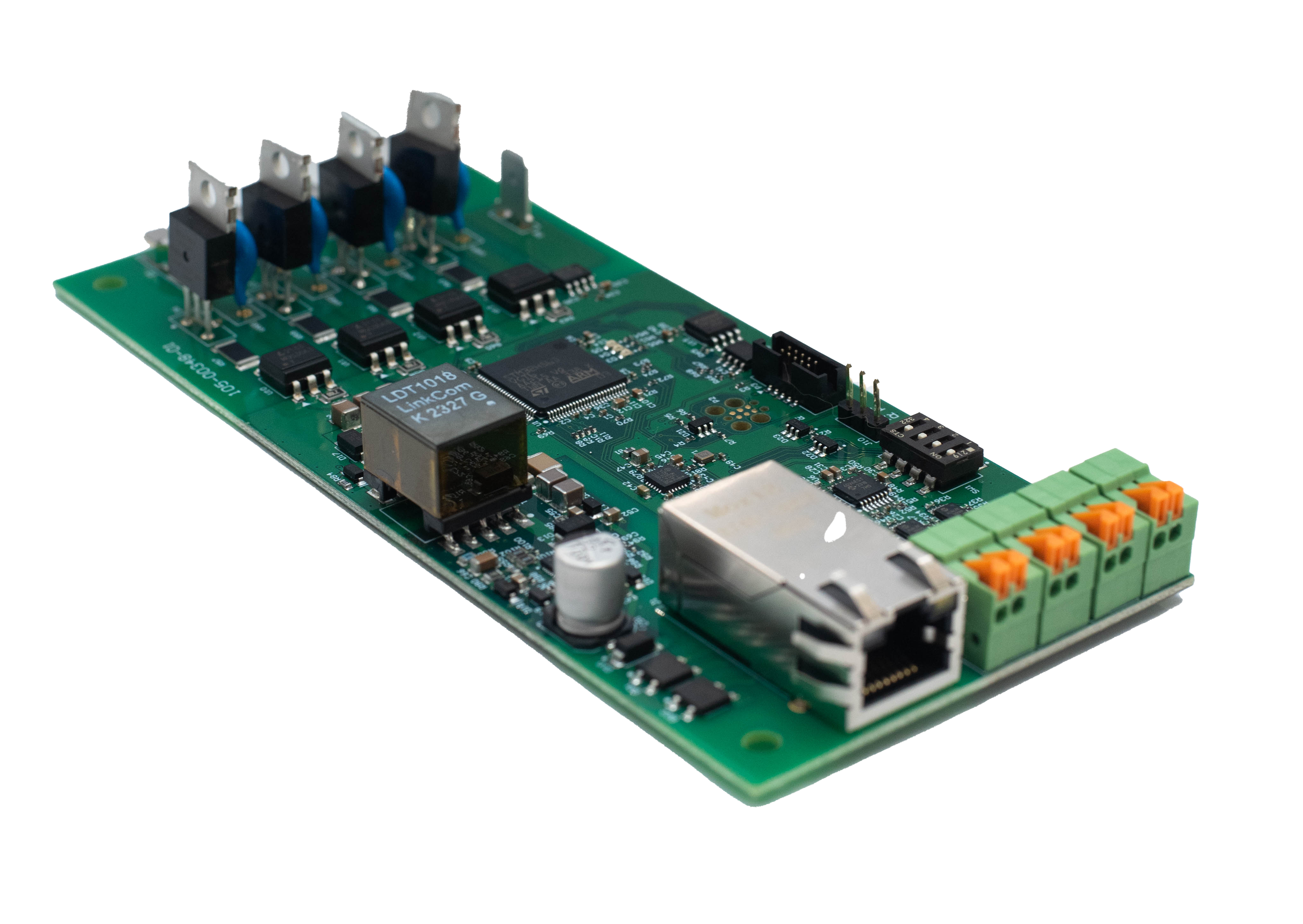

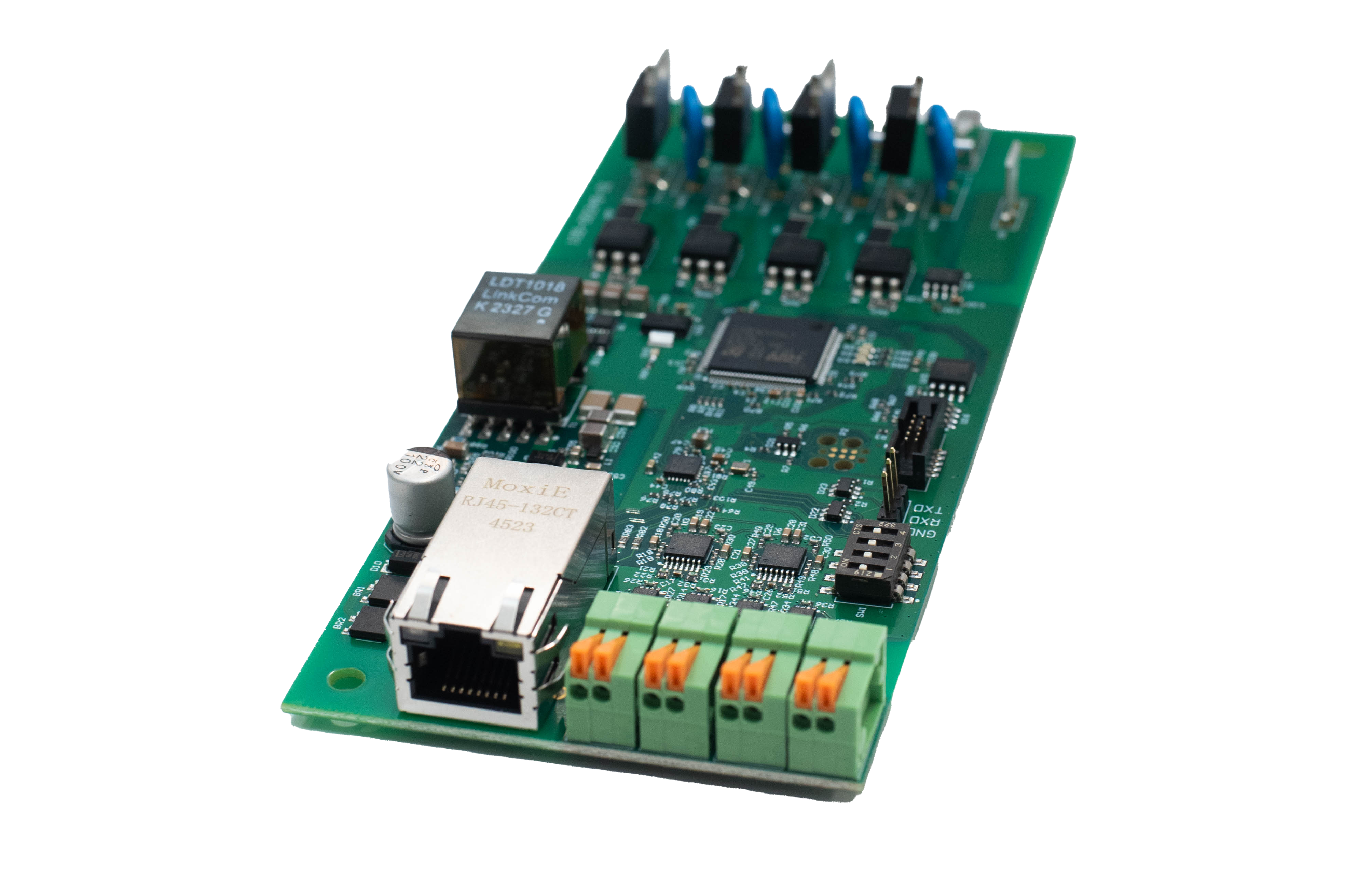

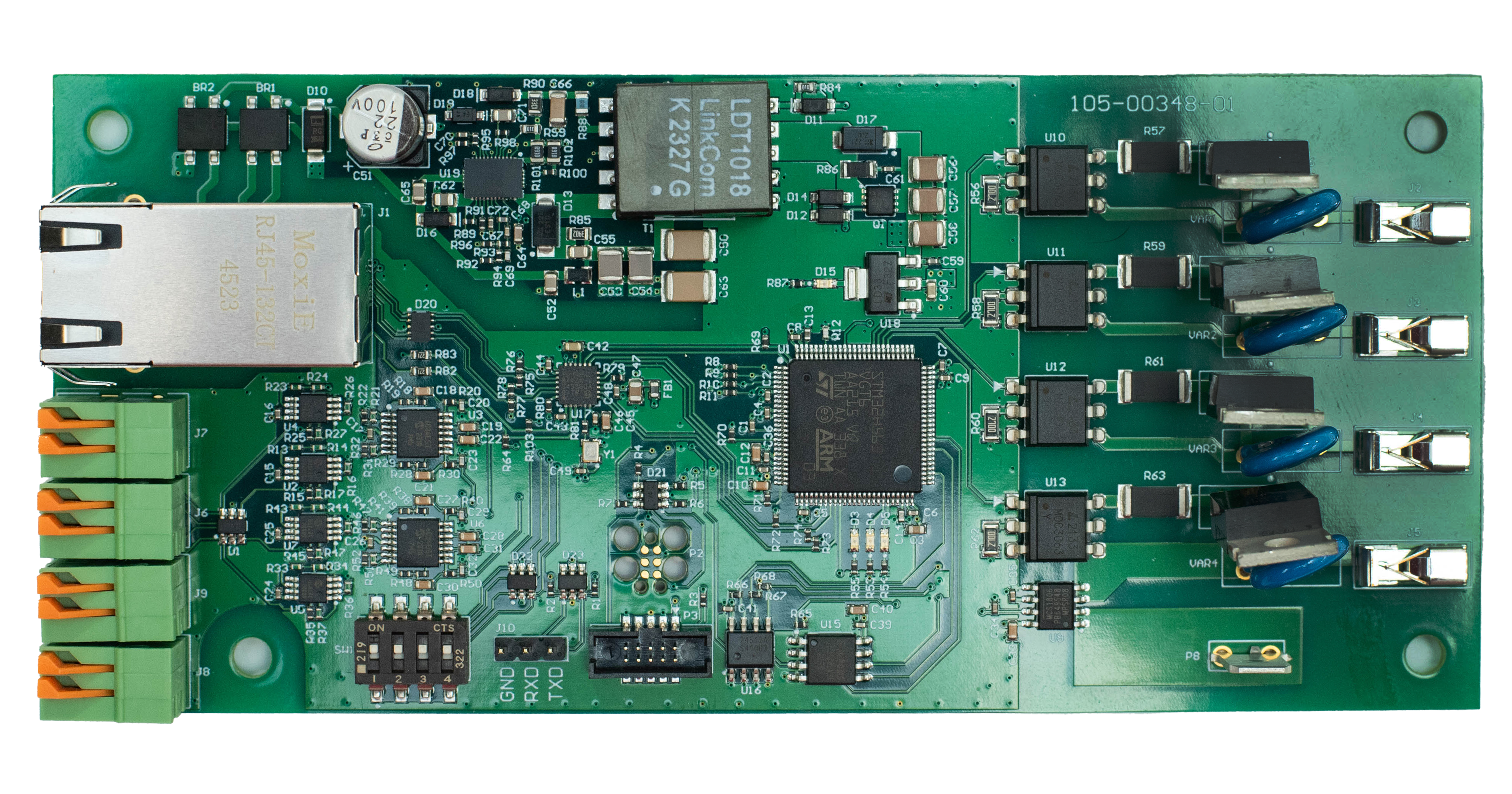

The PoE powered device reference design demonstrates IEEE 802.3at 13W power delivery and 10/100 Ethernet communication using low cost standard cabling. The design can read 4 RTD temperature sensors and control 4 Triac’s connected to resistive headers.

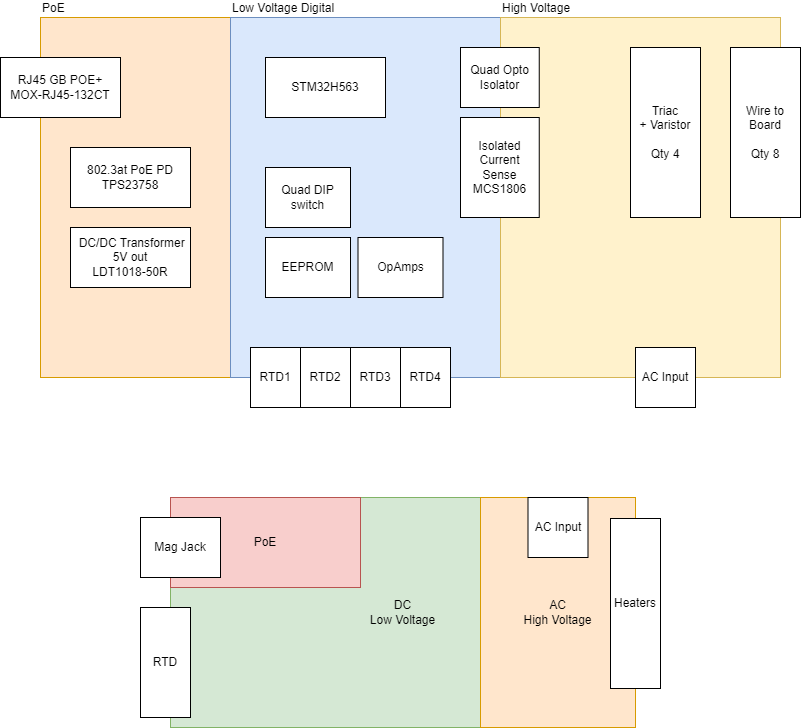

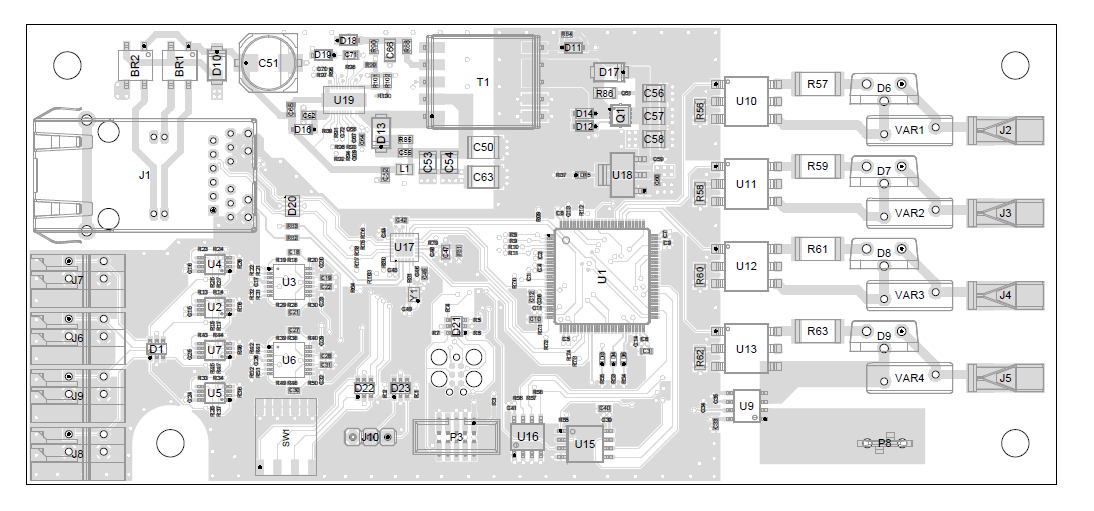

The PCB is isolated into 3 areas. First is the PoE section isolated from the digital section via 48V to 5V transformer. The digital section is isolated from the Triac high voltage section using opt isolators.

Specifications

CPU
NameST Micro STM32H563
Primary CoreArm Cortex-M33 ( 250MHz )
RAM640kByte
Flash1-2MByte
External Memory16MByte QSPI
Processor Longevity2034
PoE
PD controllerTPS23758
Ethernet PhyLAN8720
Mag JackMOX-RJ45-132CT
TransformerLDT1018-50R
Operating Systems
RTOSAzure RTOS
Physical / Environmental
Dimensions (W x L)
Industrial operating temperature-40 to 85°C
